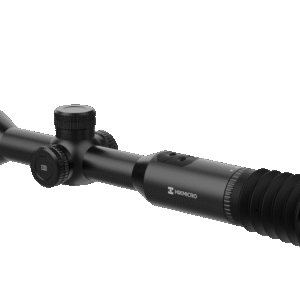

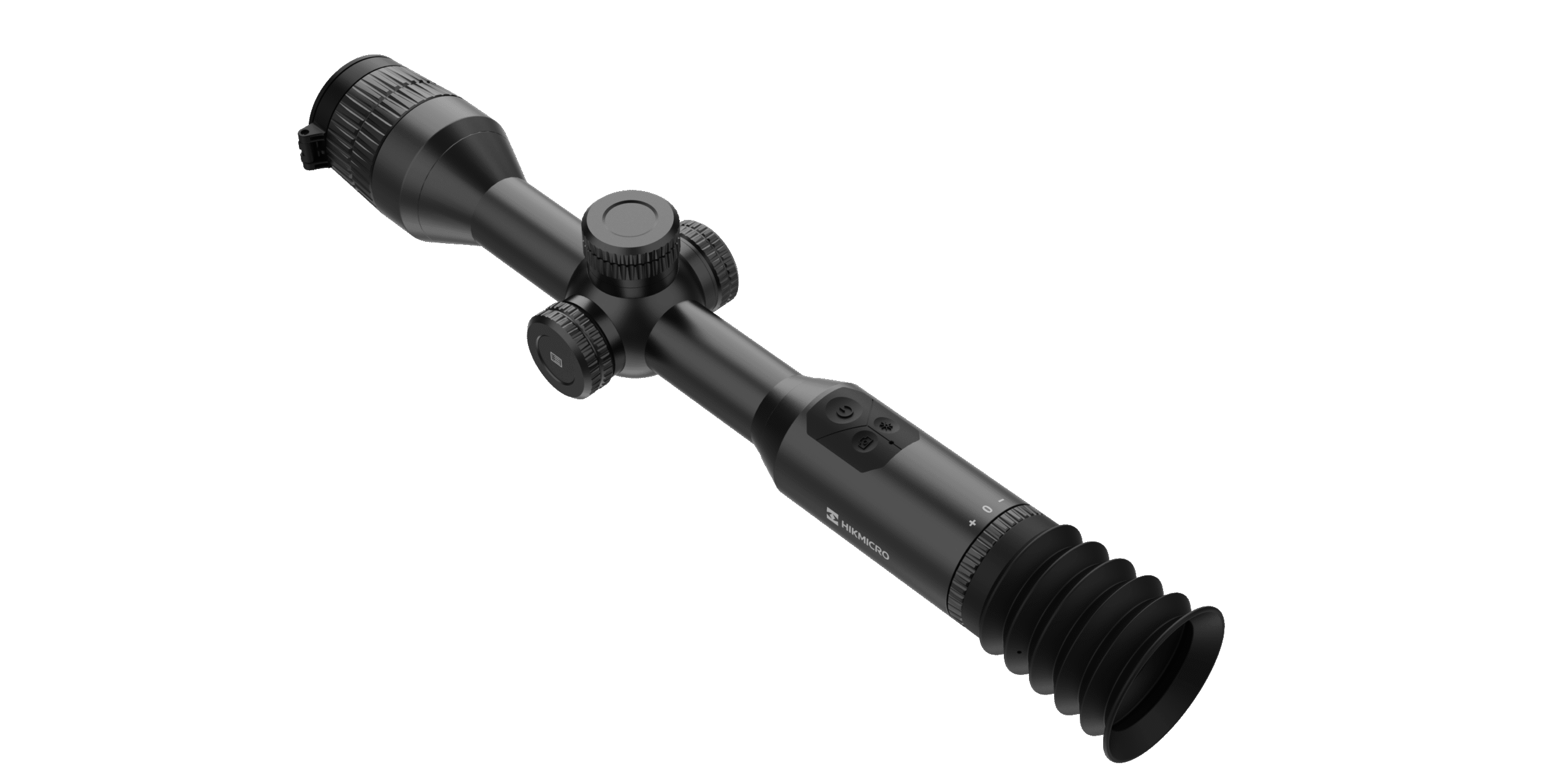

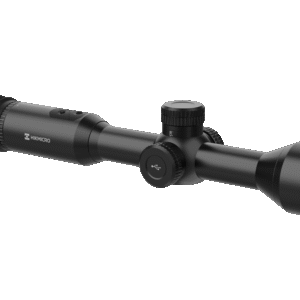

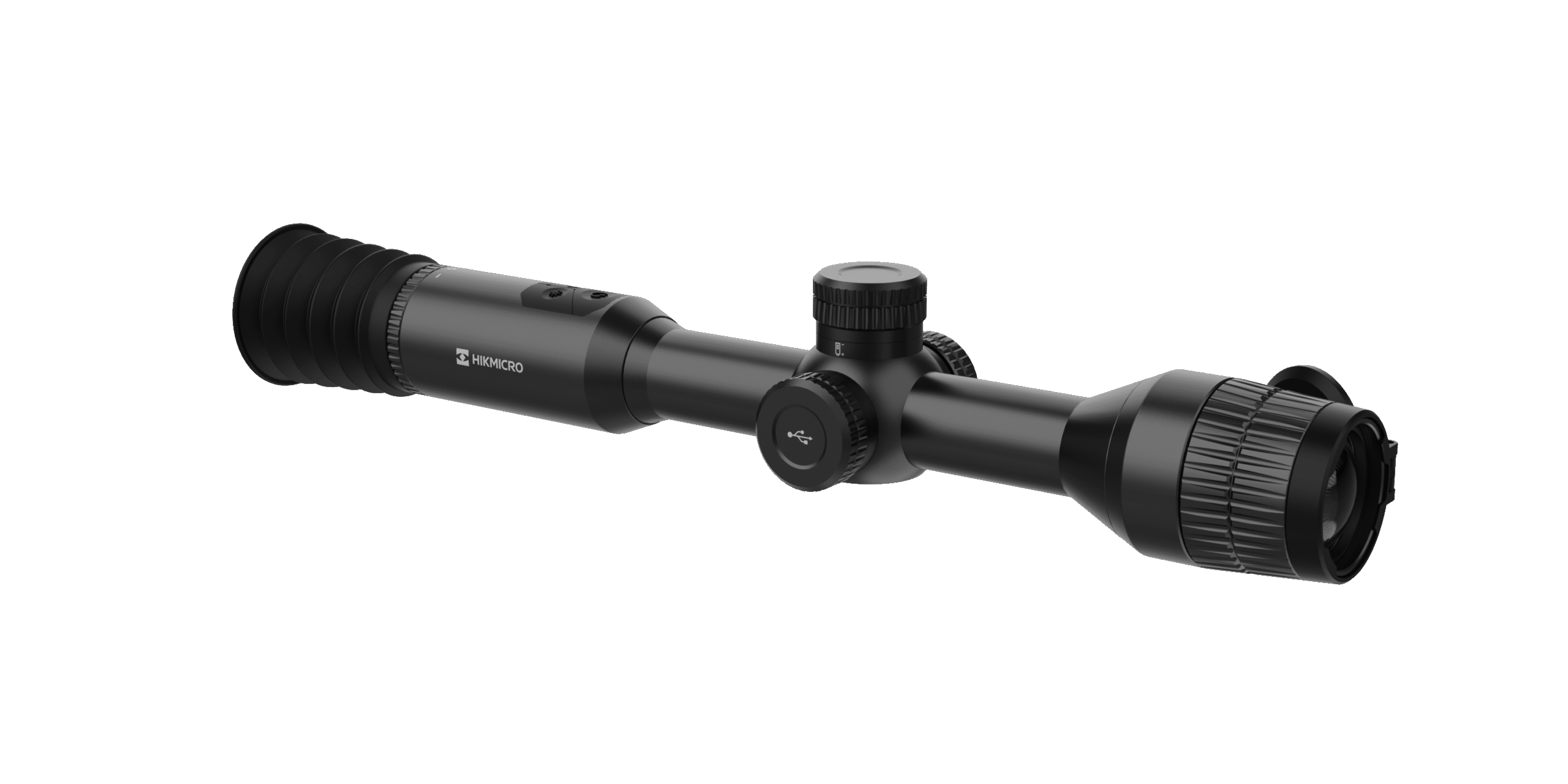

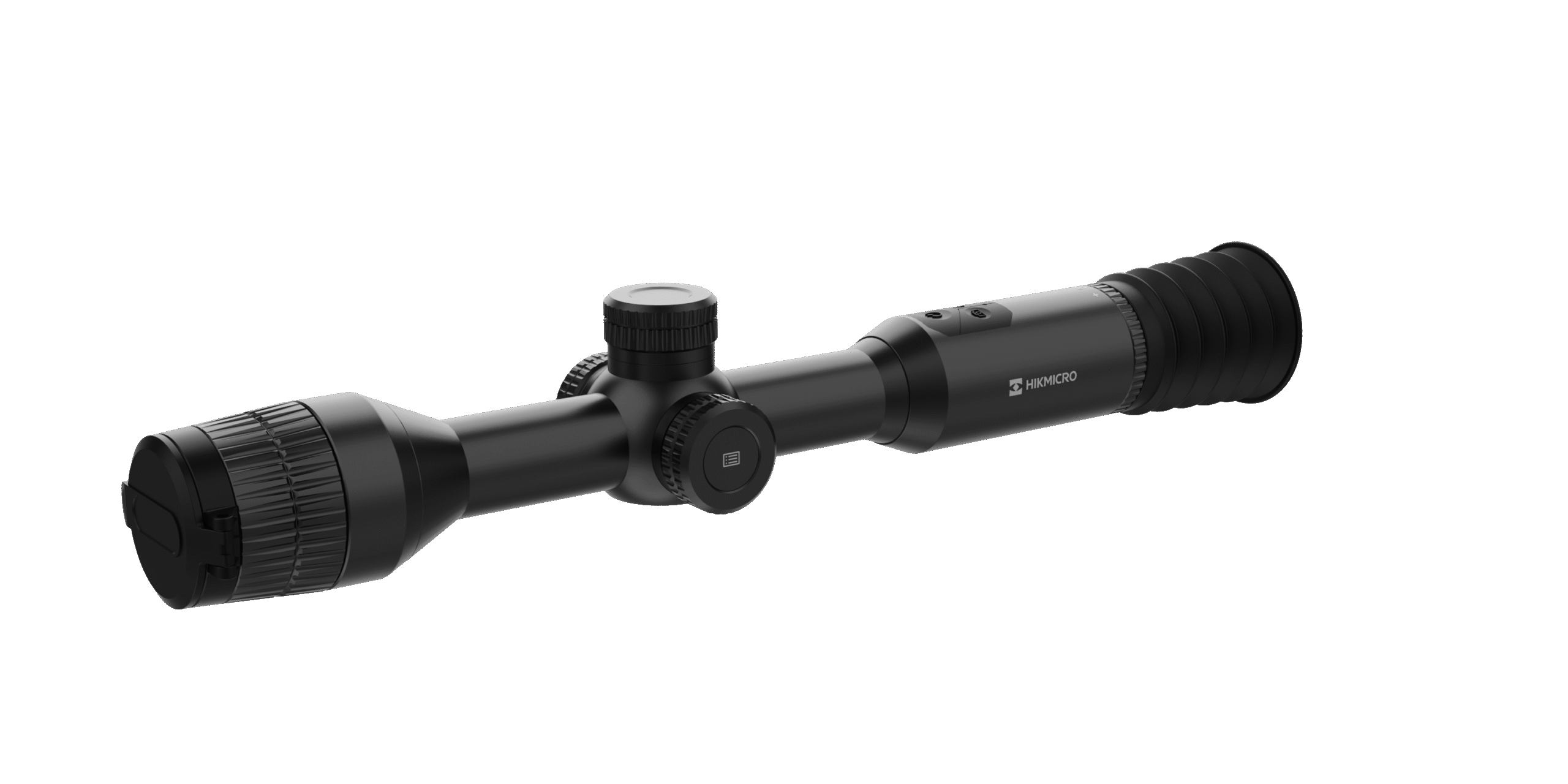

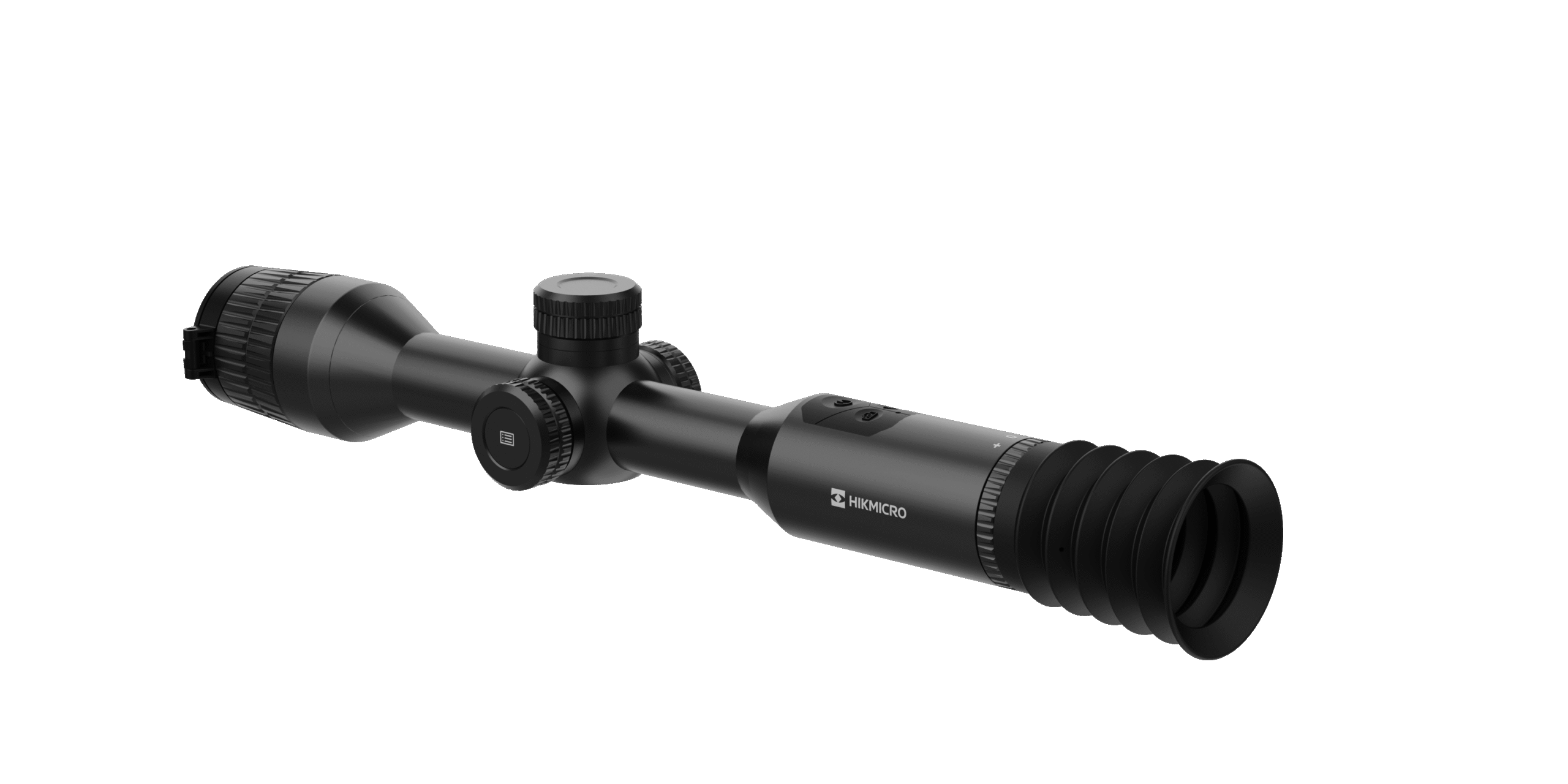

Thermal imaging rifle scope Hikmicro Stellar SH35
The Hikmicro Stellar SH35 thermal imaging rifle scope (HM-TR33-35XG/W-SH35) has 384×288px resolution core with sensitivity < 35mk a 1024×768px OLED display and high quality lens with 35mm focal length. These parameters ensure a clear image in harsh environmental conditions such as darkness, fog, smoke, dust, rain, snow, forest cover, etc. The traditional 35mm lens design meets the needs of professional hunters who value tradition and seek technological superiority with extreme detection range up to 1800 meters. All of this supports your perfect target acquisition when hunting or protecting property.
2x built-in 18650 batteries and 1x RCR123 replaceable battery provide up to 13 hours of operation. Automatic video recording with sound triggered by a gunshot
The Hikmicro Stellar riflescope is distinguished from the competition by light weight under 890g, compact dimensions (470 x 78 x 76 mm), and a core (< 35mk). The lower the NETD value, the better the sensor can record small temperature differences of objects with perfect images! The body is made of Magnalia (solid aluminium alloy). IPX7 waterproofing provides protection against rain, snow and falling into water up to 1 metre deep for up to 30 minutes.
The SH35 is equipped with the latest image processing techniques:
Automatic Gain Control (AGC: Auto Gain Control): AGC technology automatically adjusts the dynamic range of the image. Hikvision thermal cameras use a unique technology called adaptive AGC, which is much more advanced than the common so-called linear AGC used in other manufacturers' thermal cameras.
The 384x288px 12µm, VOx resolution core ensures that the image is still sharp after zooming (no cubing).
Left: classic thermal imaging. On the right: Hikmicro thermovision with AGC.
Digital Detail Enhancement (DDE) DDE technology uses advanced algorithms to render details sharper even when they are in low-contrast areas (warm/cold objects).
Left: classic thermal imaging. On the right: Hikmicro thermovision with DDE.
3D Digital Noise Reduction (3D DNR) 3D DNR technology very effectively removes grainy or blurry parts of the observed scene. The resulting image is much clearer than instruments using traditional two-dimensional noise reduction (2D DNR).
Left: classic thermal imaging. On the right: Hikmicro thermal imaging with 3D DNR
HIKMICRO is one of the few manufacturers custom core production with 384x288px resolution 12µm, VO typex and this makes the latest thermal imaging systems great value for money. The lower the NETD value (35mk), the better the sensor can record small temperature differences of objects with perfect images!
Built-in thermal detector with high sensitivity 35mk provides a clear image even in harsh environmental conditions such as darkness, fog, smoke, dust, rain, snow, forest cover, etc.
| Detector resolution | 384 * 288, 12µm |
| NETD | < 35mk (at 25°C, F # = 1.0) |
| Lentils | 35 mm + manual focus |
| Optical magnification | 2,7x |
| Digital magnification | 1x, 2x, 4x, 8x |
| Total magnification | 21,6x |
| Field of view |
7.53 ° × 5.65 ° |
| Car detection | 4472 m |
| Human detection | 1800 m |
| Display | 0.39-inch, OLED, 1024×768, 50Hz |
| Pallets | Heat as Black, Red, White, or Fusion |
| Correction of diopters | -5D-+5D |
| Wi-Fi | YES |
| Number of cross types | 5 (= up to 5 weapons fired) |
| Number of colours of the cross | 4 (red, black, green, white) |
| Video recording option | YES |
| The possibility of taking photos | YES |
| Contrast adjustment | YES |
| Adjustable brightness | YES |
| Repository | Built-in Micro SD memory module (64 GB) |
| Power supply | two built-in 18650 and one spare CR123 (External) |
| Battery operating time | up to 15h (without Wi-Fi) |
| Possibility of connecting an external power supply (powerbank) | YES |
| Ports | USB C, analogue video output |
| Working temperature | -30°C ~ 55°C |
| Degree of protection | IP67 (protected against immersion in water. Immersion for 30 minutes to a depth of 1 metre) |
| Dimensions (L x W x H) | 407 x 78 x 76 mm |
| Weight | 890g |
| Warranty | 3 years |
*Detection is dependent, among other things, on meteorological conditions (snow, rain, fog, ambient temperature, etc.). The actual detection performance can be either higher or lower.
Package contents:
- Thermal imaging rifle scope Hikmicro Stellar SH35
- High quality transport bag with Hikmicro logo
- USB-C connection cable
- Instructions in Czech
- Cleaning cloth for optics
- 1x CR123 battery
